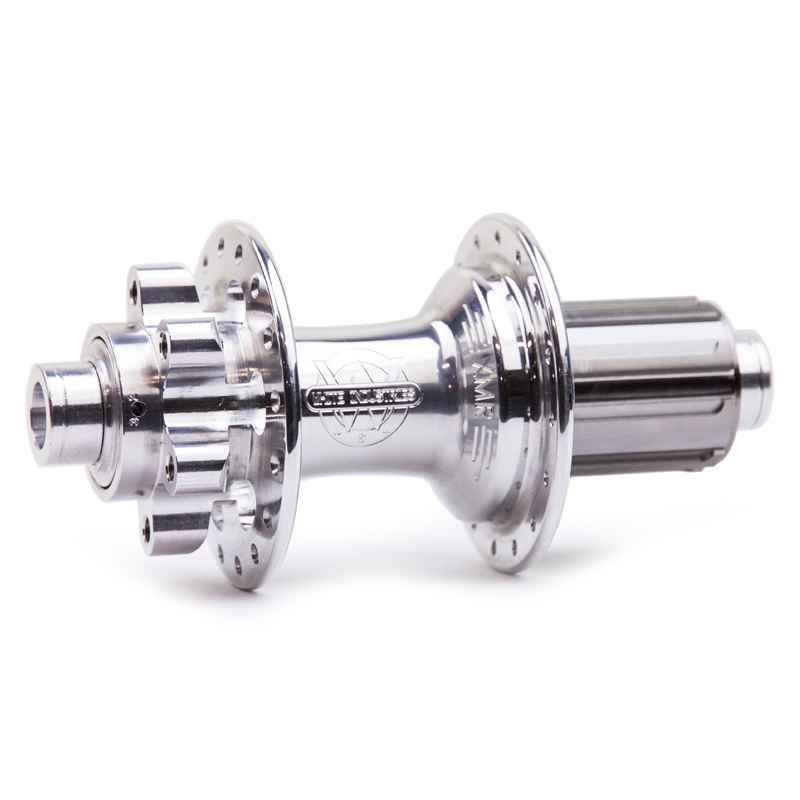

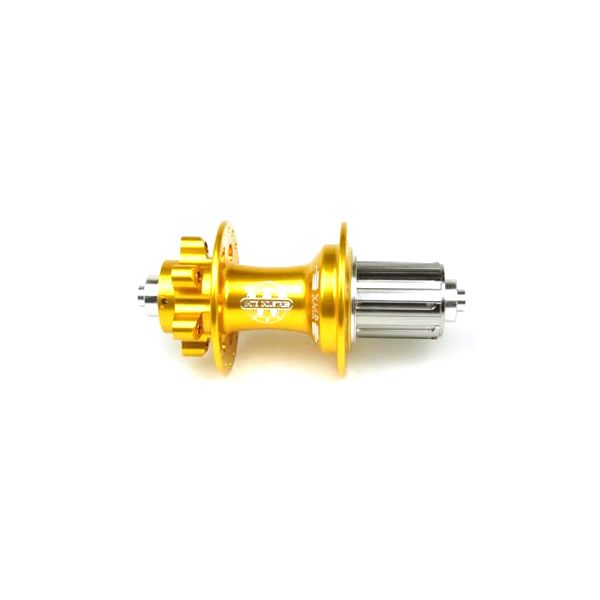

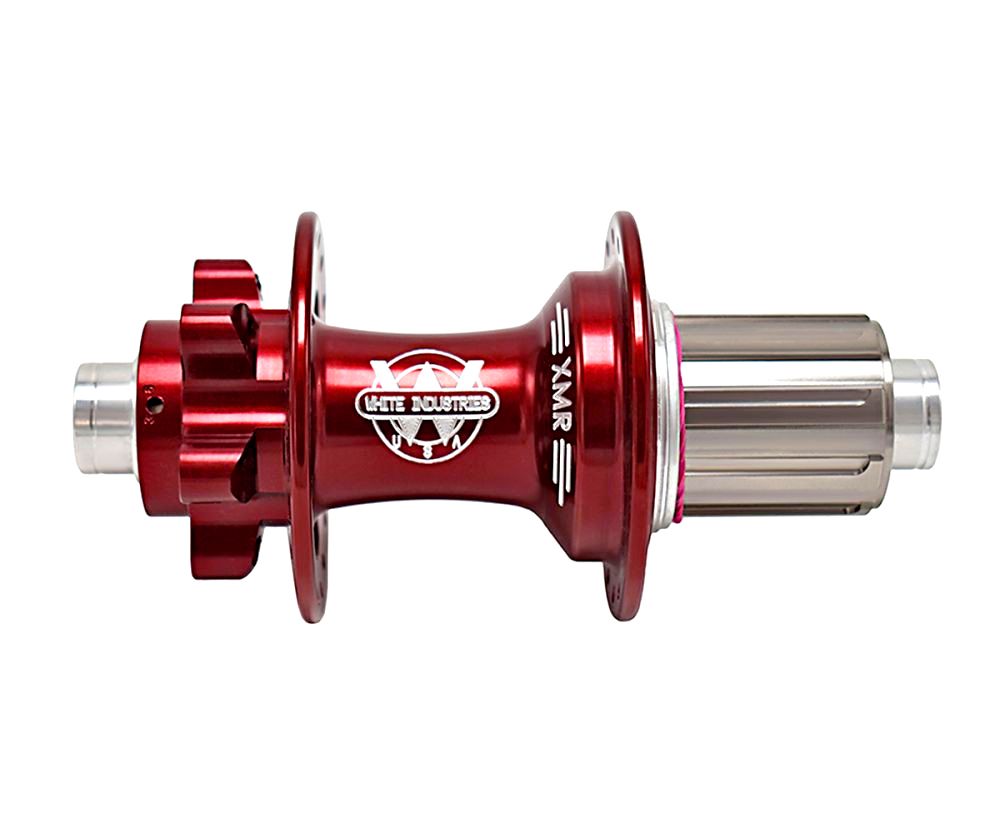

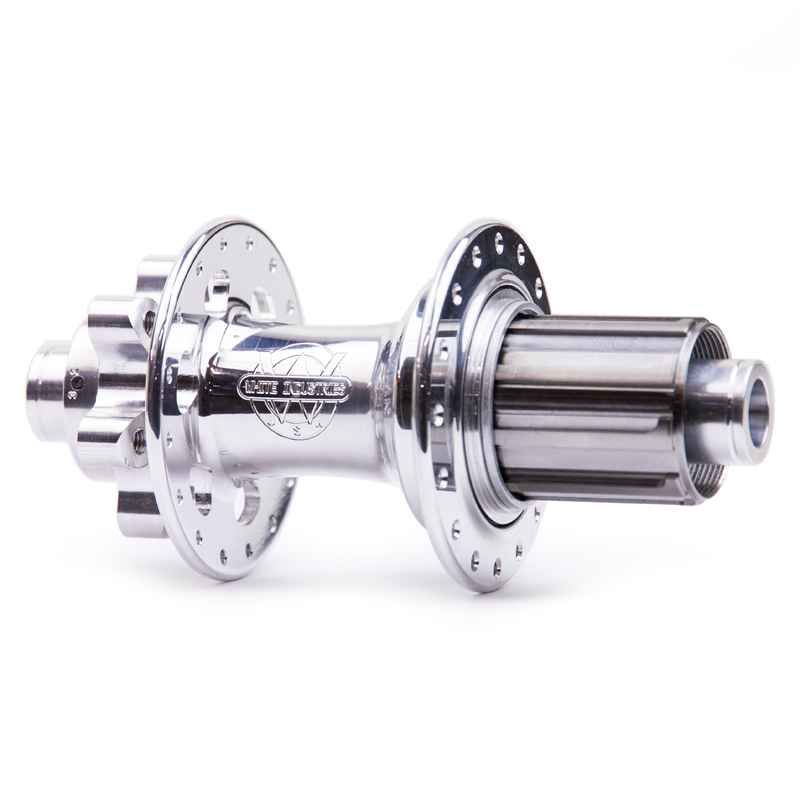

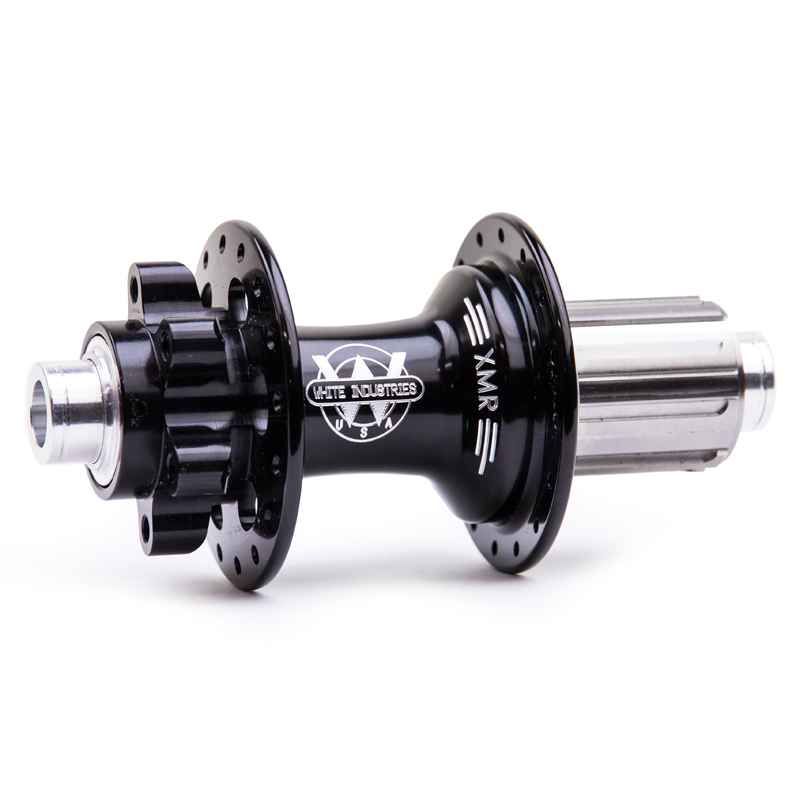

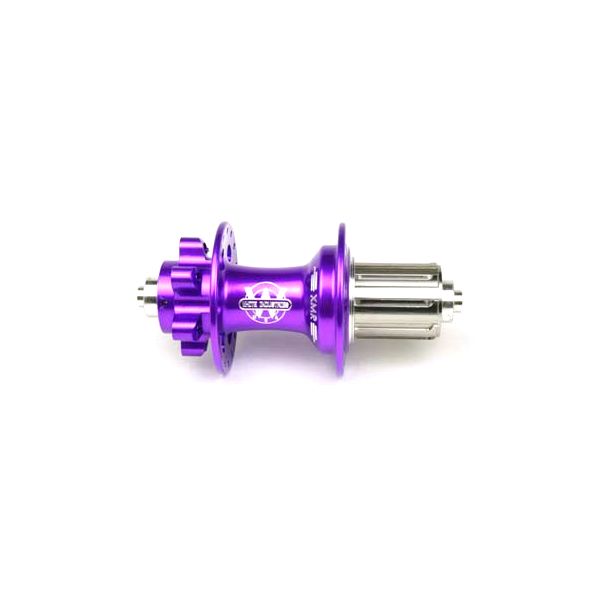

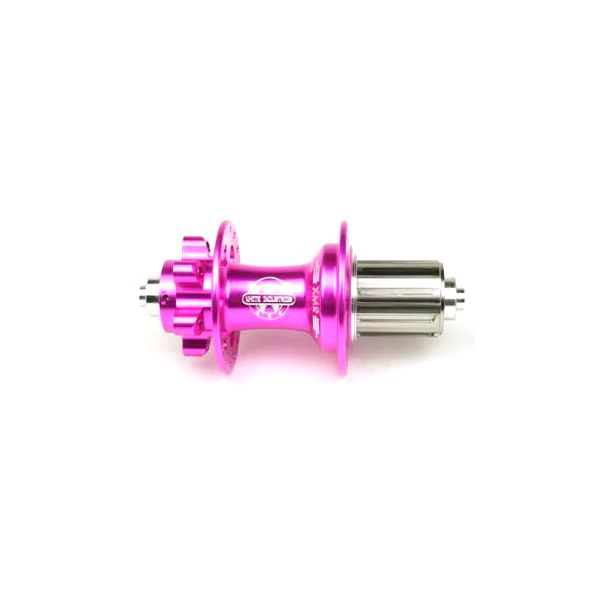

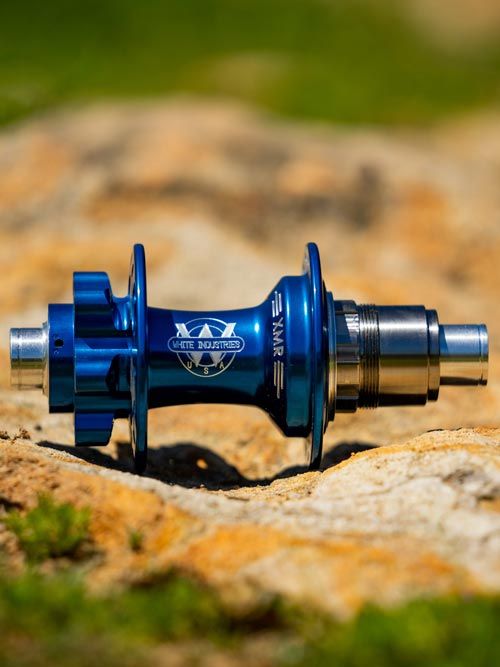

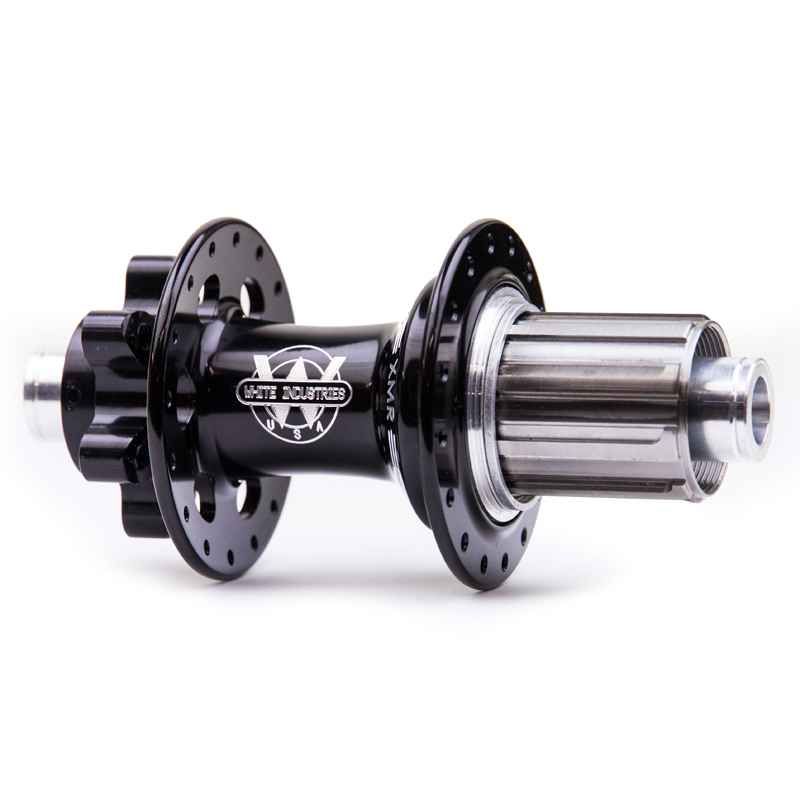

White Industries XMR+ Boost Rear 12x148 XD/XDR

Our XMR+ (Cross/Mountain/Road) Boost hubs are designed around the ISO 6-bolt rotor mounting interface as opposed to the Center Lock mounting standard used on our CLD hub. The Boost spacing allows for wider hub flange spacing which results in better spoke bracing angles. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings, colors, and axle configurations.

A question we always get about our disc hubs is, “CLD or XMR? Which is better?”. Neither is “better” than the other. Both share the same internals and the differences really come down to the respective designs having to accommodate the two different rotor mounting interfaces. Bottom line is you really can’t go wrong with either hub!

Features

• U.S. made 6061-T6 aluminum


• Enduro bearings


• 6/4 titanium driver


• 3-pawl, 48 point (7.5 degree) engagement


• Easily serviceable/rebuildable


• Compatible with 6-bolt rotors


• Cassette spacer included only on XDR freehub bodies



  • Available separately for Shimano HG11 (part# SPACER11)






• Radial spoke lacing not recommended

Specs

• 306g


• 28H, 32H, 36H, and 40H drillings


• Axles:



  • 12mm x 148mm Thru





Bearings

• All Enduro ABEC 5 except 3802W (ABEC 3)

Wheelbuilding specs

• Spoke hole diameter


•



  •



    • 2.6mm









Technical Documents

• Rear Hub Assembly


• Ratchet Ring and Pawl Identification


• Ratchet Ring Removal and Installation


• Freehub Body Identification Guide
