Description

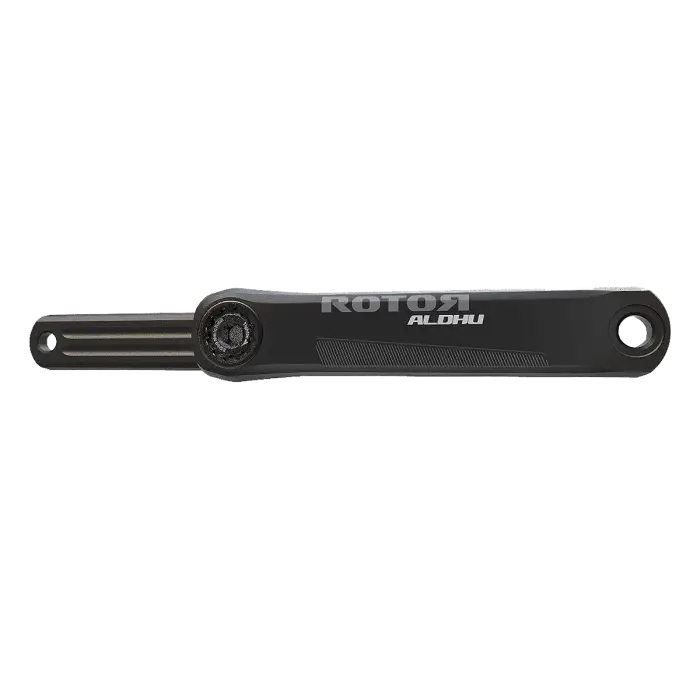

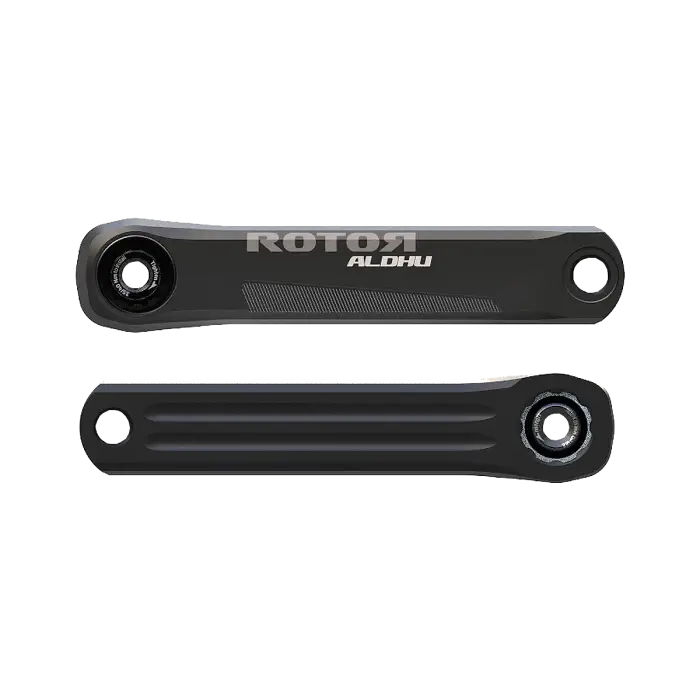

ROTOR ALDHU®24 cranks. The innovative modular structure, together with axles and different chainring options, makes each component individually available to accommodate the current spectrum of riders and bike standards.
The ALDHU®24 incorporates OCP Mount technology, which enables the rider to fine-tune the orientation of ROTOR’s oval Q RINGS. The ALDHU® proprietary, patent-pending design is based on the modularity of each crankset component.
ROTOR Aldhu24 Cranks features:
| Weight | 355 g (170mm w/o chainrings & 24mm axle) |
| Sizes | 155 mm | 165 mm | 170 mm | 172 mm | 175 mm |
| Q-Factor | 148 mm |
| Chainline (2X) | 43.5 mm (standard spindle) |
| Chainline (1X) | 44.5 mm (standard spindle) | 47 mm (offset spindle) |
| Material | 7055 aluminium |
| Compatibility | BSA24, ITA24, BB30 bearing kit, PRESS FIT 4624, UBB4624, BB386, PRESS FIT 4124 |
