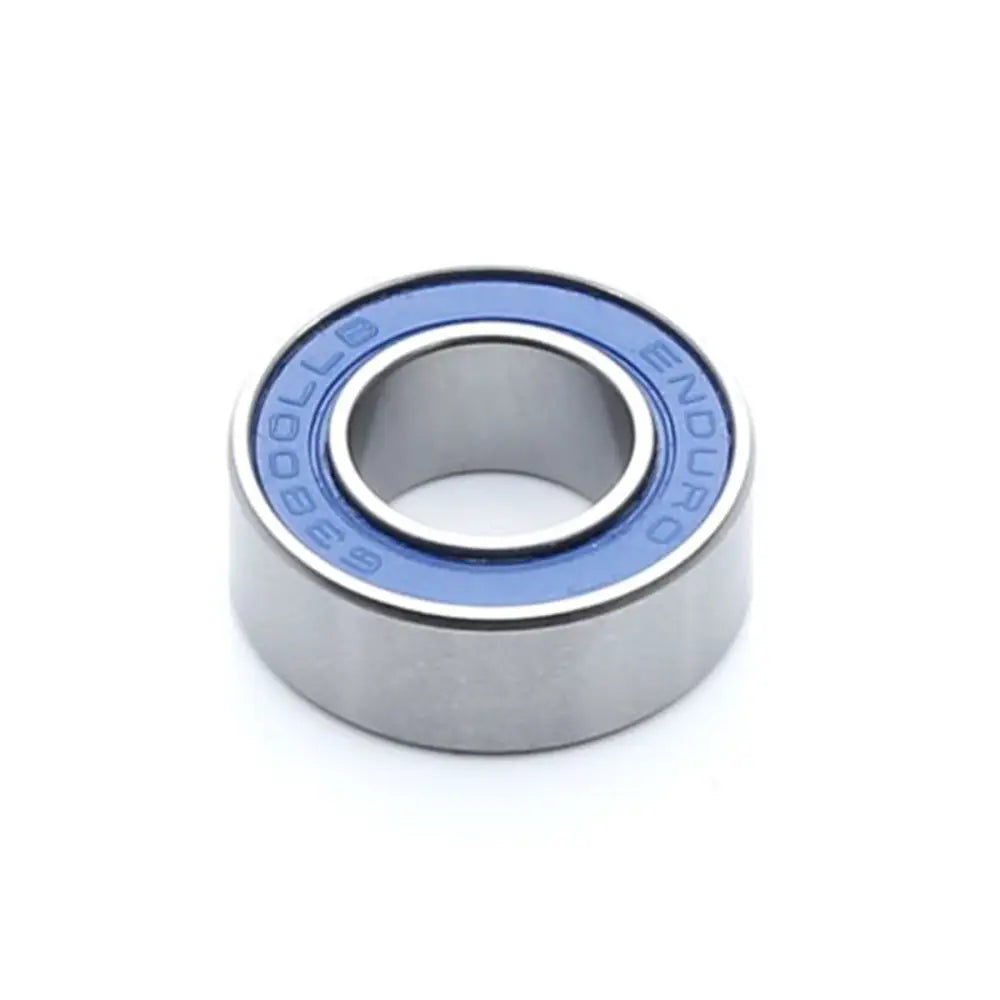

63800 - Extra-Wide, Radial Bearing - 10mm x 19mm x 7mm -
Extra-wide radial bearing used as a hub bearing for some quick-release hub designs but has more often seen used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use. This ABEC-3 bearing features deep-groove design races, with Grade 10 balls, full-contact, dual-lip LLB seals and 90% fill with high pressure water proof grease to withstand daily abuse of use and the elements.

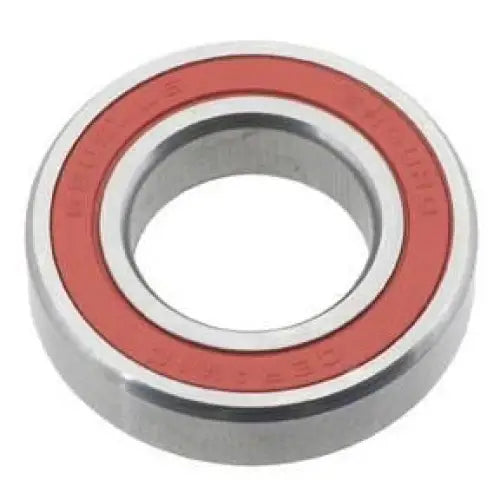

This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 High-Carbon chromium alloy races, with grade 5 Silicon-Nitride Ceramic balls, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobilux NGLI 2 high pressure water proof synthetic grease. Si3N4 ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing.
Extra-wide radial bearing used as a hub bearing for some quick-release hub designs but has more often been used as a pivot bearing, though the MAX-type version of this bearing is better suited for suspension use.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deep groove races to accommodate the largest balls possible. All of our standard bearings feature dual-lip seals that ride in a micro-groove creating full labyrinth to provide superior protection against the elements.
Static load - 207bf / 0.92kN
Weight - 6.35g
