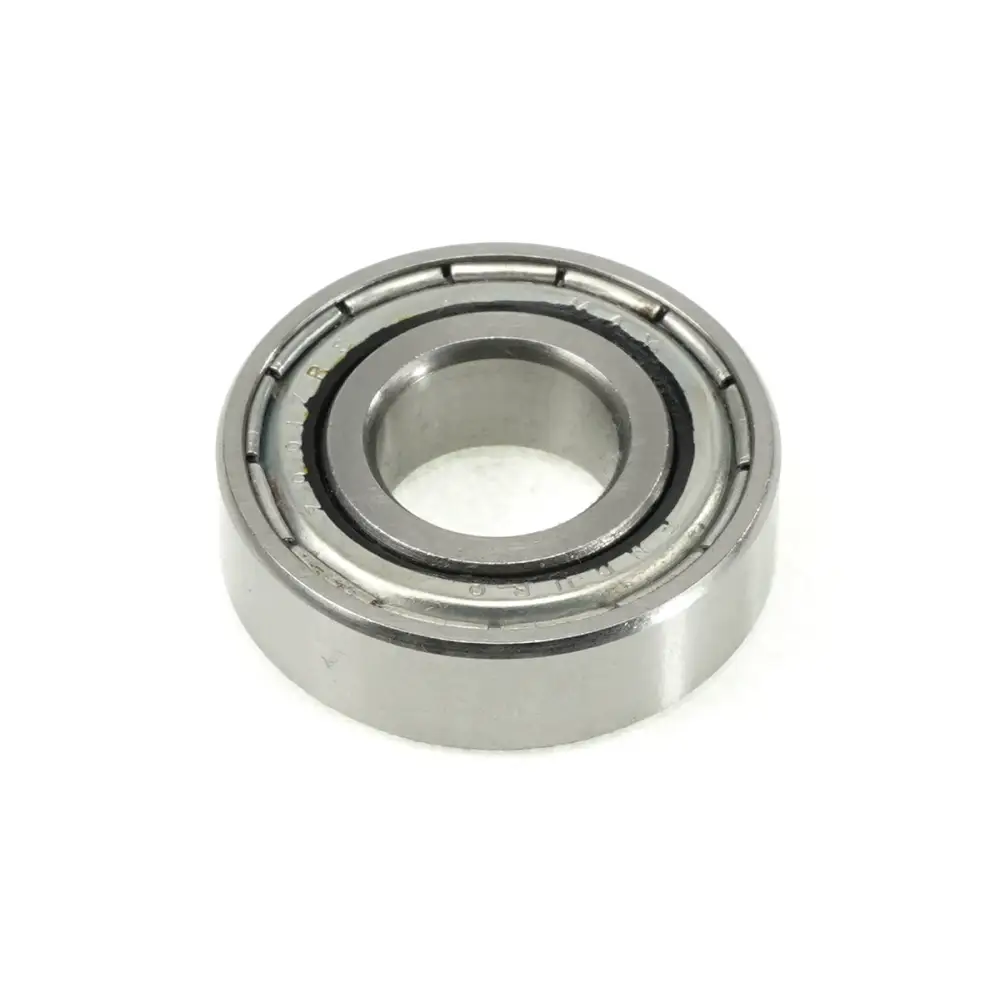

Enduro Max Angular Contact Bearing 7001


Variant: Enduro Angular Contact Bearing MAX 7001 1ZS MAX 12 x 28 x 8 mm
Price:
Sale price$17.00 NZD

Tax included Shipping calculated at checkout

Description

7001 MAX - Angular-Contact, MAX-Design, ABEC-3, radial suspension bearing - 12mm x 28mm x 8mm -


Enduro Bearings pioneered MAX type bearings over 20 years ago for bicycles to address the challenges associated with mountain bike pivots. MAX-type bearings provide 35-40% more load capacity than standard radial bearings by utilizing a special design where the maximum number of balls are inserted into the bearing, via a custom ground slot in the races. The additional balls, combined with deep race grooves in these bearings provide greater lateral support for the twisting and multi-directional forces associated with mountain bike pivots. This ABEC-3 bearing features deep-groove design races, with grade 10 balls and full-contact, double-lip, labyrinth (LLU) seals for maximum protection against the elements, while keeping the 90% fill of Almagard extra high pressure grease inside. When properly installed (black seal facing in) and adjusted, Enduro Angular Contact (A/C) bearings engage all of the bearing's balls to spread the force over a larger surface area, decreasing friction, minimizing wear and increasing bearing life.

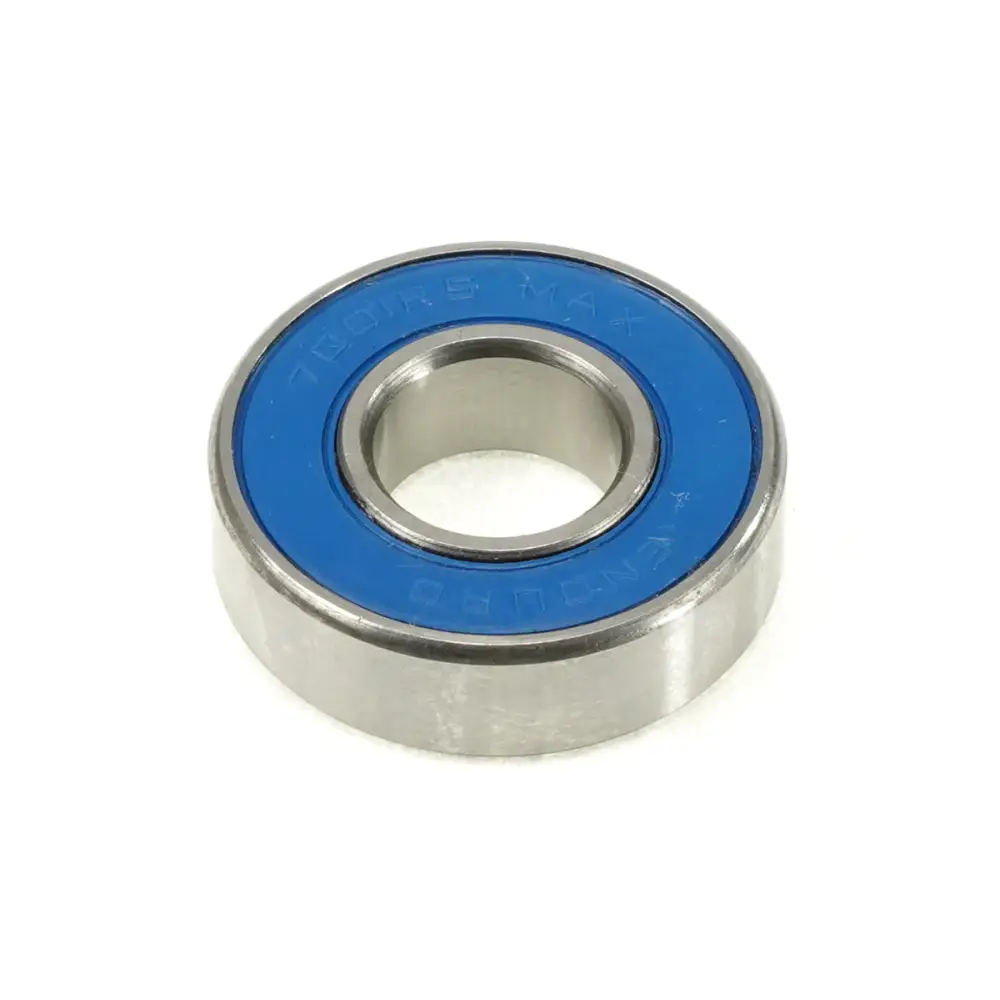

The 2RS version of this bearing has been used as a suspension pivot bearing by Intense.


The 1ZS single seal specification is designed for use with grease injection systems like those found in linkages on older Intense & VPP Bikes.





The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.


Static load - 825lbf / 3.66kN
Weight - 20.8g
